AeroCoach Ascalon adapters

Name: AeroCoach Ascalon adapters
SKU: ASCADAPTERS
Price: 166.67 GBP
Availability: InStock

Store / Aerobar components

SKU ASCADAPTERS

£166.67

For Ascalon type

Please choose

Adapter type

Please choose

Adapter angle

Please choose

Quantity:

Product Details

MBN: ASCADAPTERS

Please note: any adapters purchased from this page are only compatible with the AeroCoach Ascalon extensions, and will be provided with bolts needed for assembly with Ascalon extensions

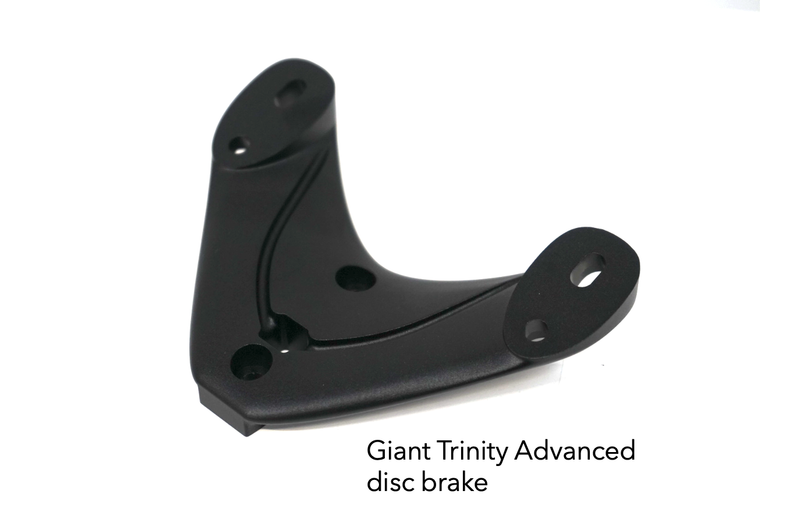

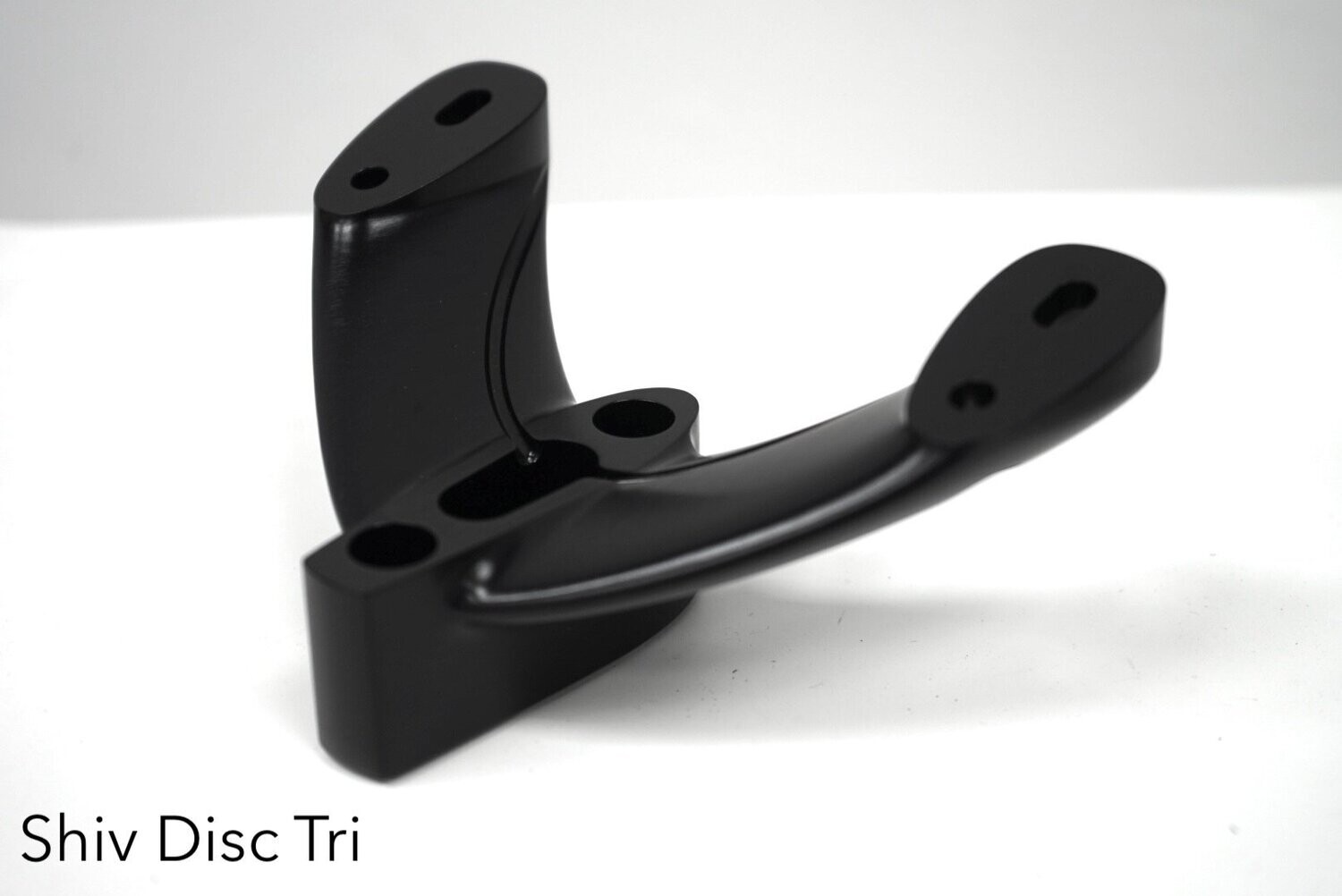

Ascalon extensions are attached to the base bar using either one of our proprietary adapters (e.g. Shiv TT disc brake), or standard tilt block adapters provided with base bar specific matched spacers and threaded bars (e.g. Giant Trinity Advanced). Some base bar adapters supplied are a combination of tilt blocks and other parts (such as extra width plates, due to the narrow mounting points on the base bar e.g. Cannondale Superslice). Please note some of the proprietary adapters increase reach, for exact specifications please see the carbon and titanium Ascalon pages. Warranty on Ascalon adapters is only valid when used with AeroCoach Ascalon extensions.

All adapters are made from CNC aluminium, with some adapters being provided with additional base bar matched spacers, which are made from PA12 nylon.

Adapter angle:

All adapters that do include the words “tilt blocks” and don’t include the words “tilt-adjustable” in the adapter dropdown menu description are available in 15, 20 or 25deg angles unless otherwise stated. E.g. ‘ADR/PDQ/Generic (tilt blocks)” or “AeroCoach Phaser”.

All adapters that include the words “tilt adjustable” in the adapter dropdown menu are tilt adjustable. E.g. “Trek Speed Concept (disc brake) – tilt adjustable”. The range of adjustment depends on the base bar / bike:

31.8mm clamps – fully adjustable (any angle can be achieved). Please ensure you have a total 31.8mm round clamp section on the handlebar of 85mm to ensure there is adequate room for the clamps either side of the stem.

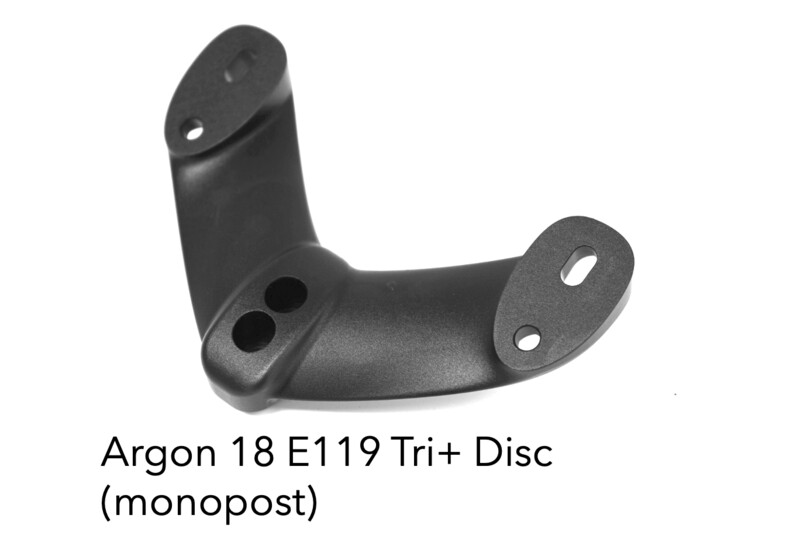

Argon E119 Tri+ Disc (monopost) – adapter has a base angle of 15deg which can be tilted upwards to any angle up to 35deg.

Cadex Tri –adapters are available in 15 or 25deg angles, and are compatible with the 5deg wedges provided with the Cadex Tri to fine tune these angles further.

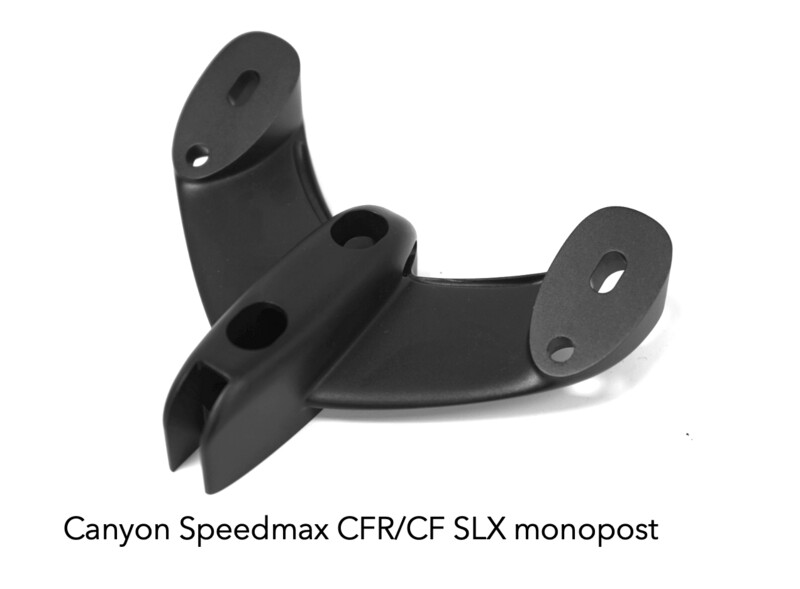

Canyon Speedmax CFR / CF SLX (monopost) – adapters are available in 15 or 25deg angles, and are compatible with the 3deg angled wedges provided with the Canyon to fine tune these angles further.

Cervelo P5 disc/PX/P3X (EX10 monopost) – angles of 15, 22, 25 and 32deg can be achieved.

Cervelo P5 disc (EX14 monopost) – angles of 15-40deg can be achieved in 5deg increments.

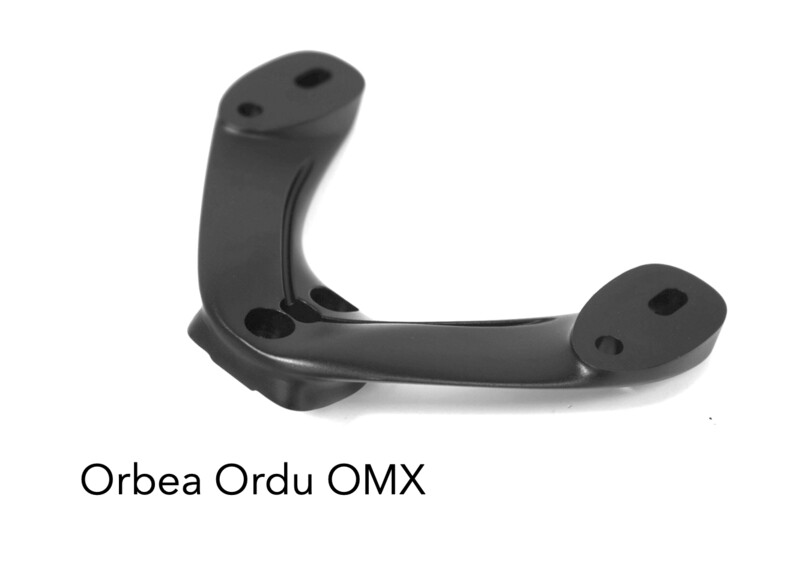

Orbea Ordu OMX (monopost)- adapter has a base angle of 15deg which can be tilted upwards using the 5deg angled spacers provided by Orbea up to a maximum of 30deg.

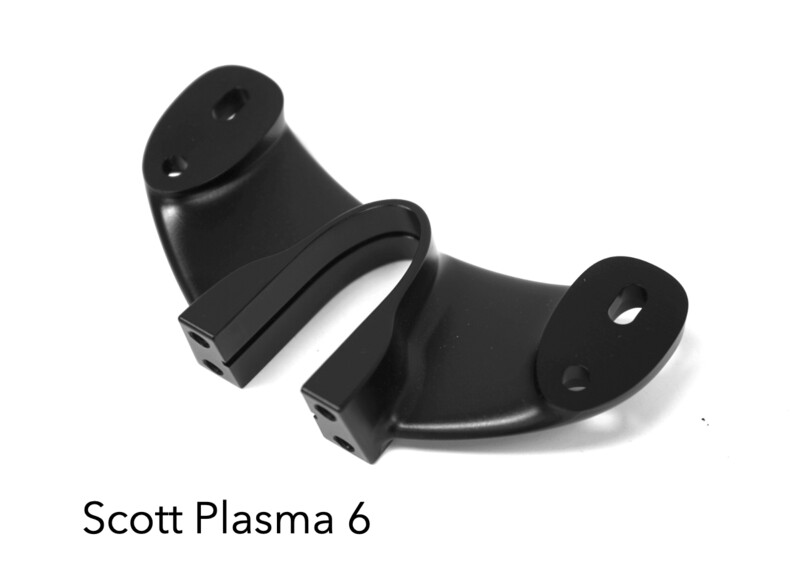

Scott Plasma 6 (monopost) – adapter has a base angle of 10deg which can be tilted upwards in 2.5deg increments up to a maximum of 25deg.

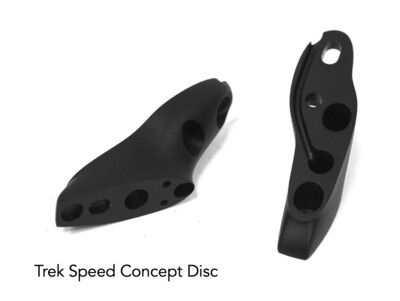

Trek Speed Concept (disc brake) – adapters provide a 21deg base angle, which can be altered to 14 or 28deg using the -7/+7deg tilt wedges provided by Trek.

Trek Speed Concept (rim brake) (monopost) – adapter has a base angle of 15deg which can be tilted upwards to any angle up to 27deg.

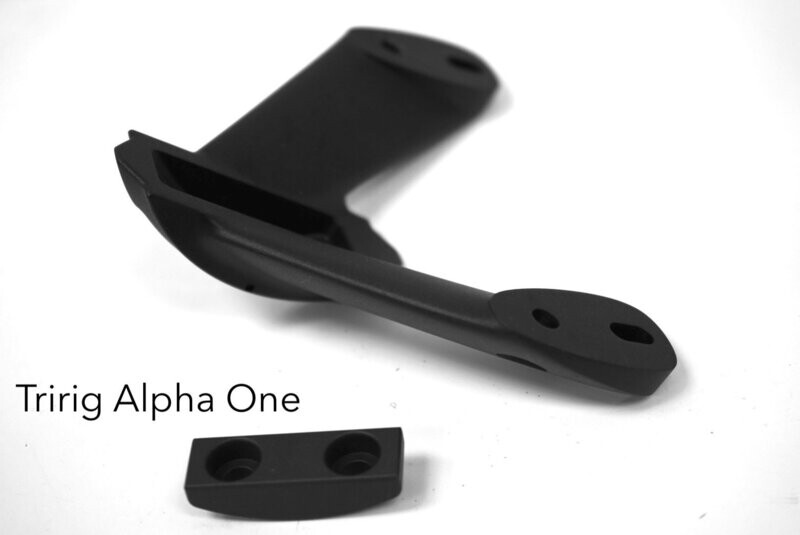

TriRig Alpha One (monopost) – adapter has a base angle of 10deg which can be tilted upwards to any angle up to 27deg.

Van Rysel XCR (monopost) – adapter has a base angle of 15deg which can be tilted upwards using the 5deg Van Rysel tilt spacers to a maximum of 45deg.

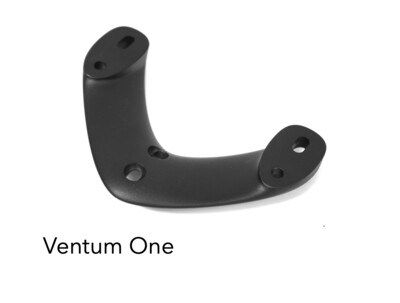

Ventum One (monopost) – adapter has a base angle of 15deg which can be tilted upwards to any angle up to 35deg.

Choice of adapter angle is dependent on personal aerodynamics and comfort preference, as well as UCI restrictions (only applies if racing in UCI TTs).

As a guide, 15deg Ascalon adapters will result in a hand height relative to elbow position approximately similar to using 20-25deg standard 22.2mm extensions, 20deg adapters will result in a hand height approximately similar to using 30-35deg extensions, and 25deg adapters will result in a hand height approximately similar to using 40-45deg extensions.

For an explanation of the UCI regulations and the various Ascalon options to achieve regulation heights, please see our blog post here.

Details of Ascalon reach measurements can be found further down this page.

INFORMATION VIDEO FOR ASCALON ADAPTERS

UCI REGULATIONS (2023 UPDATE)

Please see an explanation of the 2023 UCI regulation changes, and allowed reach and extension height dimensions based on your height category HERE

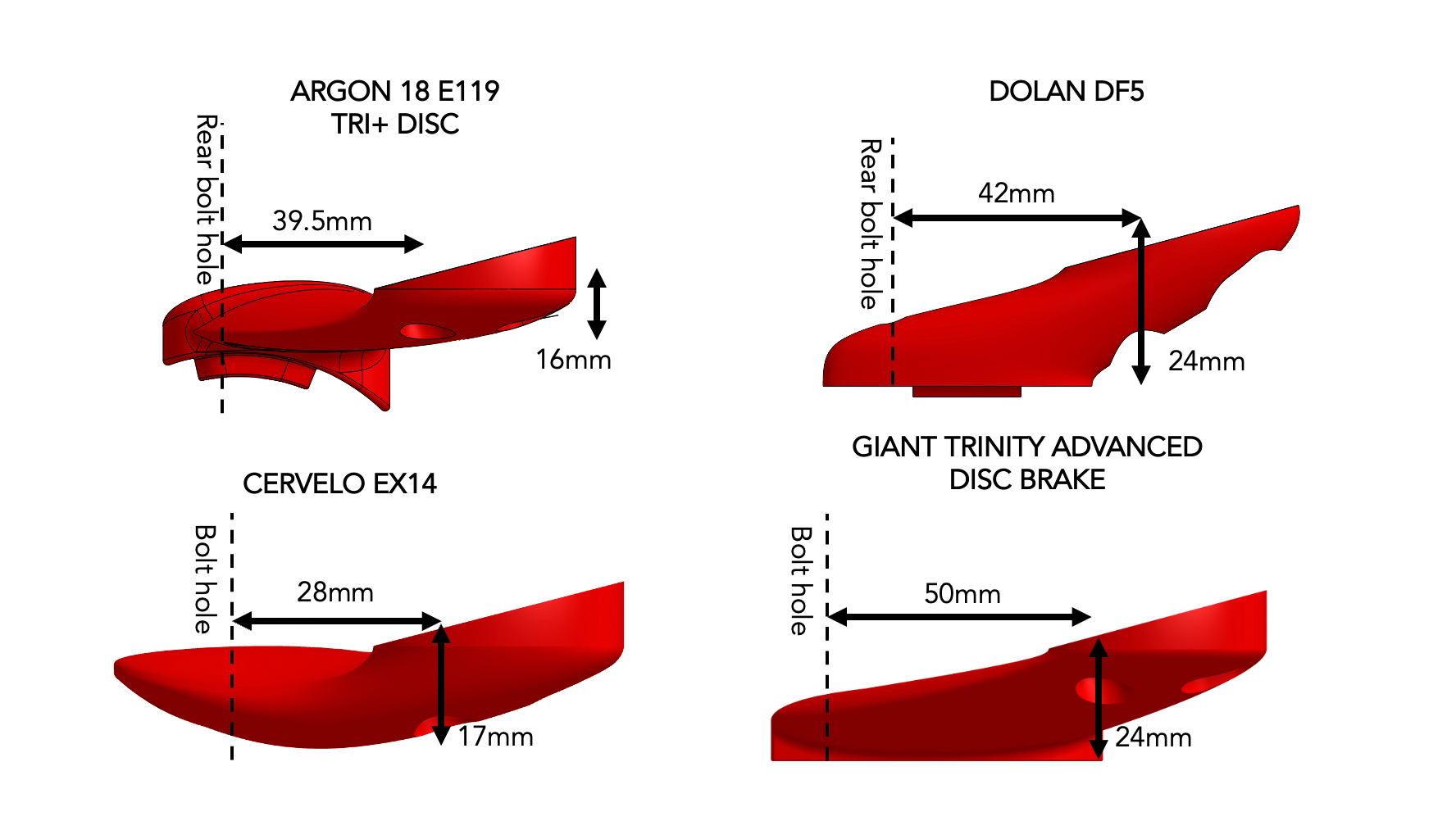

To calculate the reach range for your bike, please add the reach measurement for your specific adapter (geometry diagrams below), to the reach range for Ascalons (255-305mm for long gripper Ascalons excluding shifters).

Example 1: Ascalons mounted on tilt block adapters (e.g. for Pro Missile Evo) can be adjusted between 255-305mm (255-305mm + 0mm) from the centre of the rear base bar mounting hole, to the tips of the Ascalons excluding shifters.

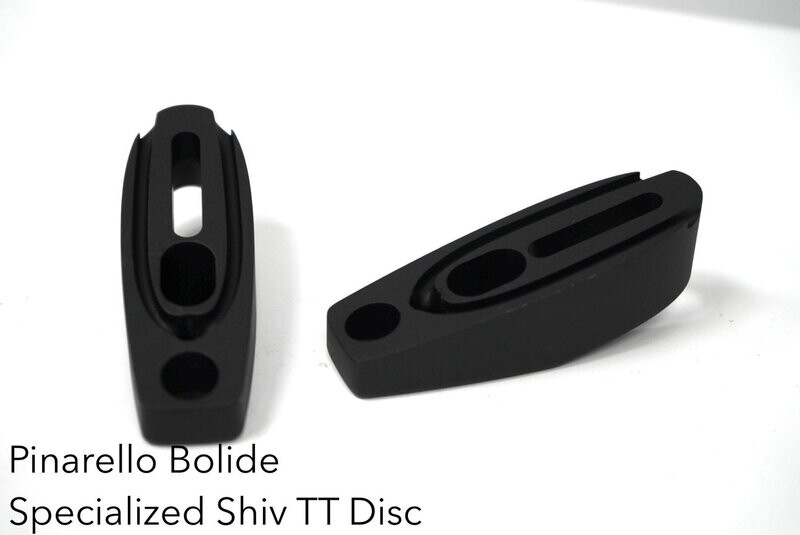

Example 2: Ascalons mounted on the Specialized Shiv TT disc adapters can be adjusted between 292.5-342.5mm (255-305mm + 37.5mm) from the centre of the rear base bar mounting hole, to the tips of the Ascalons excluding shifters.

SPECIFICATIONS

Material: Aluminium 7075

Bolts: Stainless steel

Usage: Indoor/Outdoor
