Front rotor wind tunnel aero testing 140 vs 160mm
PH587141 • 10 September 2026
IS YOUR FRONT DISC BRAKE ROTOR SLOWING YOU DOWN?

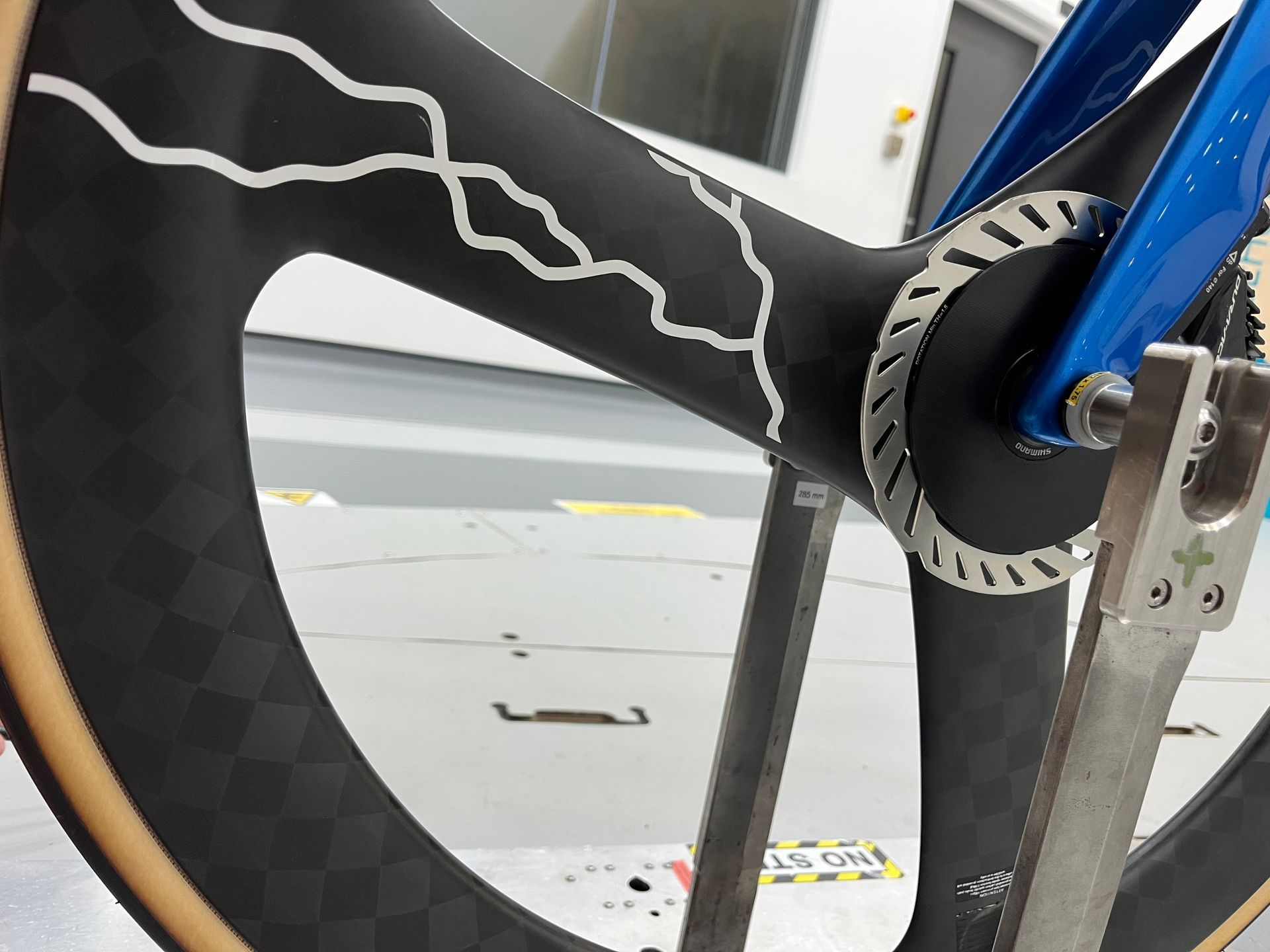

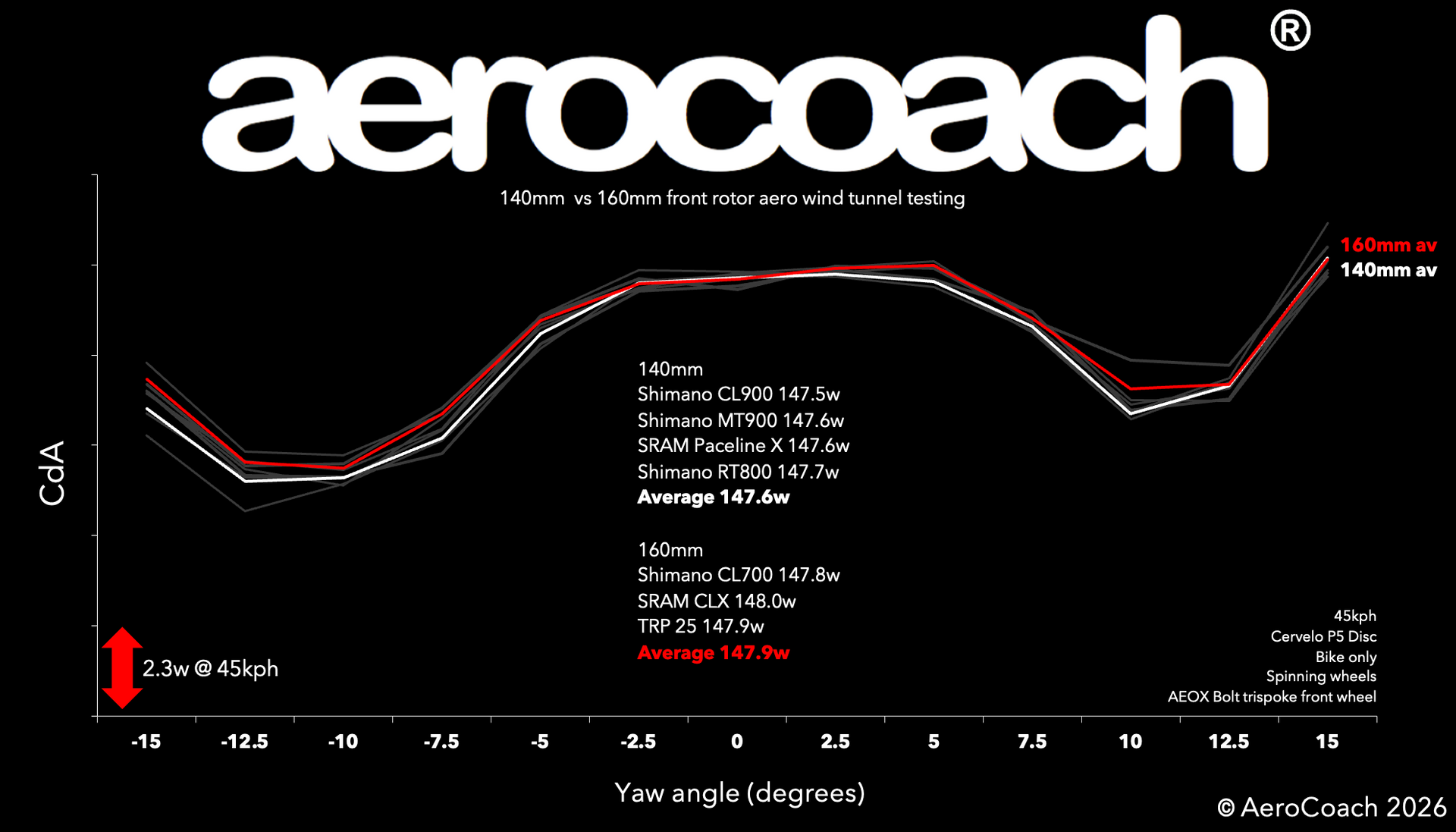

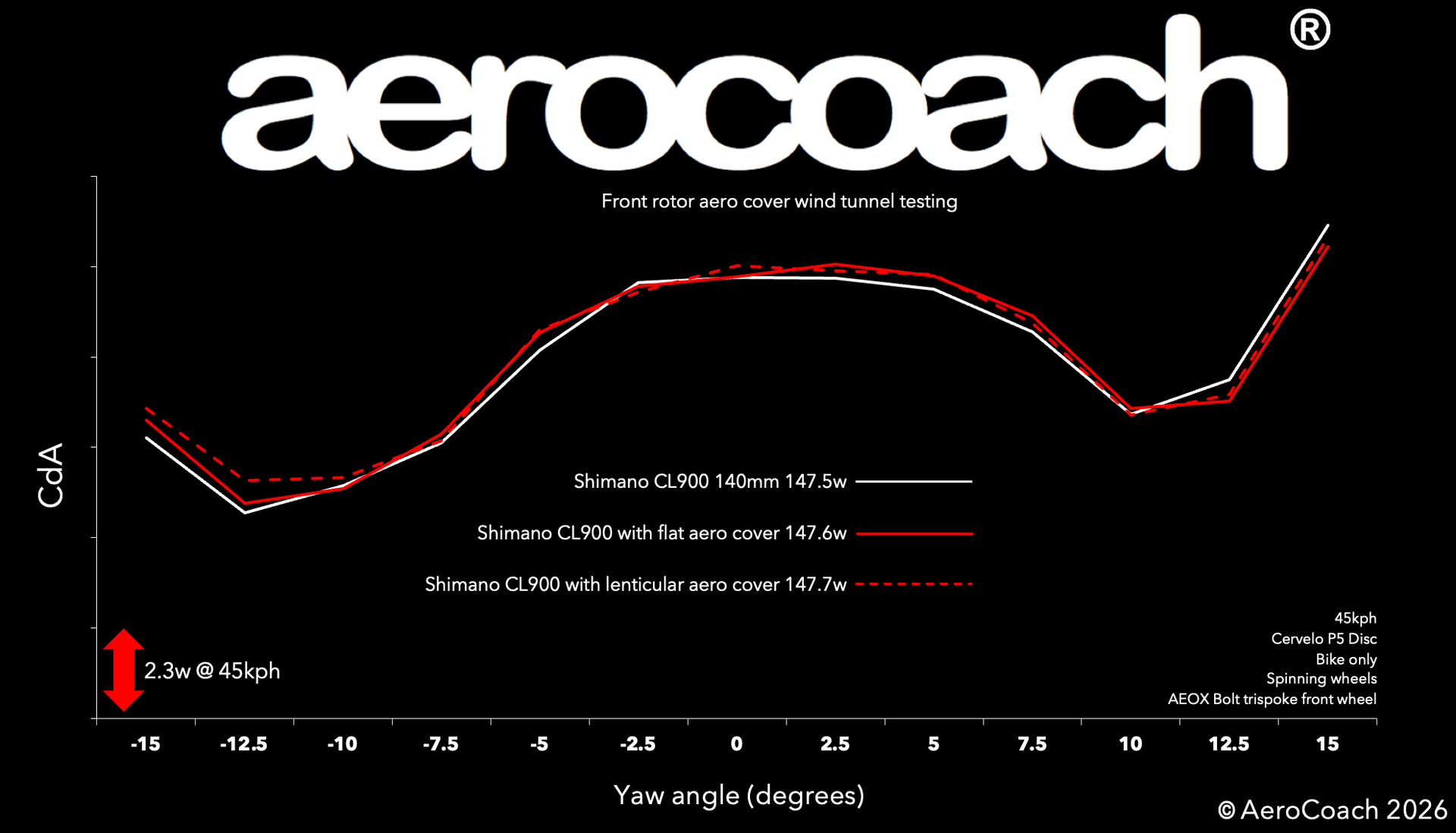

Hopefully! But in this test we wanted to see whether there was any different between a 140mm front rotor vs a 160mm front rotor, of various makes and designs, on a full bike setup at race speed (45kph). We also made two rotor aero covers for a 140mm rotor, a flat cover and a lenticular cover to see if there was any aero benefit to completely covering the rotor.
