AeroCoach Angles aerobar extensions

£87.50 incl. tax*

Size End gripper Computer mount


PLEASE NOTE - CURRENTLY THERE IS A THREE WEEK LEAD TIME ON ANGLES EXTENSIONS



CUSTOM OPTION AVAILABLE!

(FOR SRAM MECHANICAL SHIFTERS CHOOSE "SHIMANO/CAMPAGNOLO" FROM THE DROP DOWN LIST)


STABILITY/COMFORT/BIOMECHANICS

The AeroCoach Angles extensions for aerobars are ergonomically designed, made of strong and stiff 7020 series aluminium and use an industry standard 22.2mm diameter.

The 3D printed end gripper has finger grooves to allow you to stay locked into the aero position. The gripper has a shaped end with an internal channel for cable entry and is compatible with all mechanical shifters and electronic shifters (such as Di2 or SRAM eTap). No drilling for cables is required. Track grippers with no holes for shifters are also available


UCI LEGALITY GUARANTEED WITH 25deg ANGLES

Never fail the UCI 1.3.023 10cm vertical regulation ever again! Relevant only for races held under UCI regulations (not triathlons or races run under UK CTT regulations), the 25 degree Angles are specifically designed to ensure that you cannot fail the 10cm height rule when using electronic gearing. Please note that the 75cm/80cm extension reach rule must still be adhered to. In some situations the 35deg Angles can also stay within UCI vertical limits - please see the geometry chart below for full information.


NEW 35 DEGREE  TRACK DESIGN

To help stay within the UCI 1.3.023 guidelines, 35deg track extensions now come with a flattened top (please see picture in the gallery). This makes it easier to hit the 10cm vertical limit, and we recommend combining the 35deg track extensions with 15deg angled washers, and our micro adjust spacer kit to fine tune your position.


AERO COMPUTER MOUNT

PLEASE NOTE - STANDARD ROUND CLAMPING SECTION COMPUTER MOUNTS ARE NOT COMPATIBLE WITH THE ELLIPTICAL SECTION OF THE ANGLES. Garmin or Wahoo mounts are available using the drop down list above. Each computer mount comes with an optional 7 degree adapter to keep your Garmin centralised in your plane of view, even if you have adjusted your Angle tips to be closer together. A standard round tube adapter is also included for round extensions.


CHOOSE YOUR ANGLE

Please refer to the geometry information below to choose the appropriate set of Angles for you. Each pair of standard Angles comes in either 25 degree, 35 degree or 45 degree bend, and all have the same overall horizontal length of 360mm. The end grippers bend at a 25deg angle to the central elliptical section. If you would like custom geometry please read below.


STANDARD GEOMETRY

               25 degree   35 degree   45 degree

A (Horizontal round section)   140mm    140mm    140mm
B (Angle of bend)         25      35      45
C (Elliptical section)       145mm    165mm    185mm
D (Gripper length)        95mm    95mm     95mm
E (Vertical height from CENTRE
of round section to top of gripper) 95mm    145mm    190mm
F (Total length)         360mm    360mm    360mm

angleswebsitepng

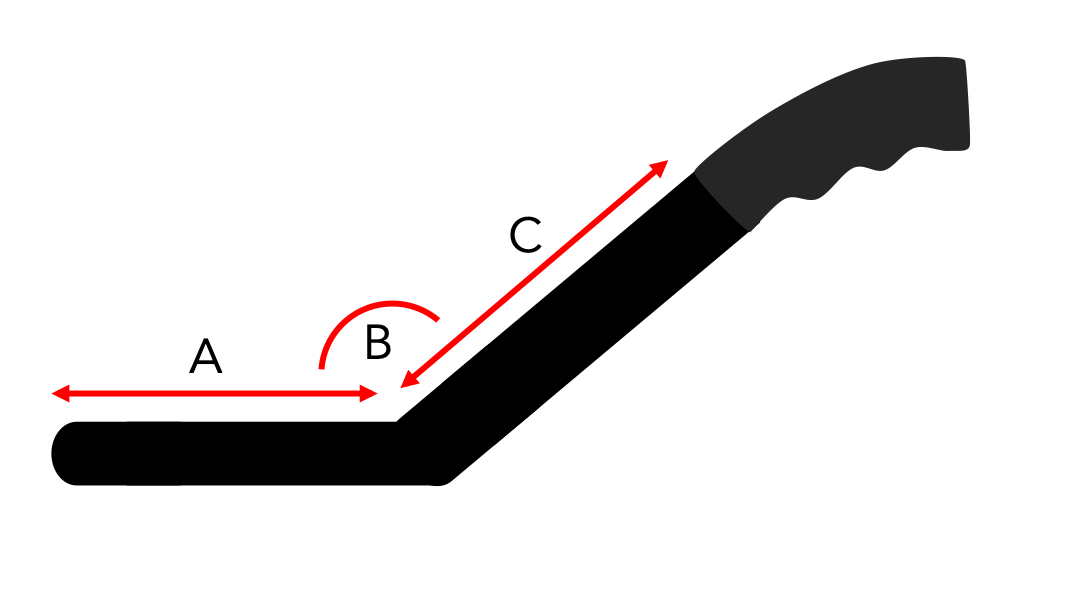

CUSTOM GEOMETRY

Choose ANY horizontal length, angle or elliptical section length you require! Simply choose "Custom" from the drop down list above and clearly state the measurements below in mm and degrees in your comments box at checkout.

Please note the end grippers are a fixed size and bend (25deg) and cannot be altered. The bend section is also a fixed 65mm in length, and this should be taken into account when measuring up for your custom size.

anglescustomwebsitepng

SPECIFICATIONS

Material (pole): 7020 aluminium
Material (gripper): 3D printed plastic
Aerobar compatibility: All standard extension clamps with 22.2mm diameter
Shifter compatibility: All makes of electronic and mechanical shifters
Weight (pair): 190g (25 degree)
