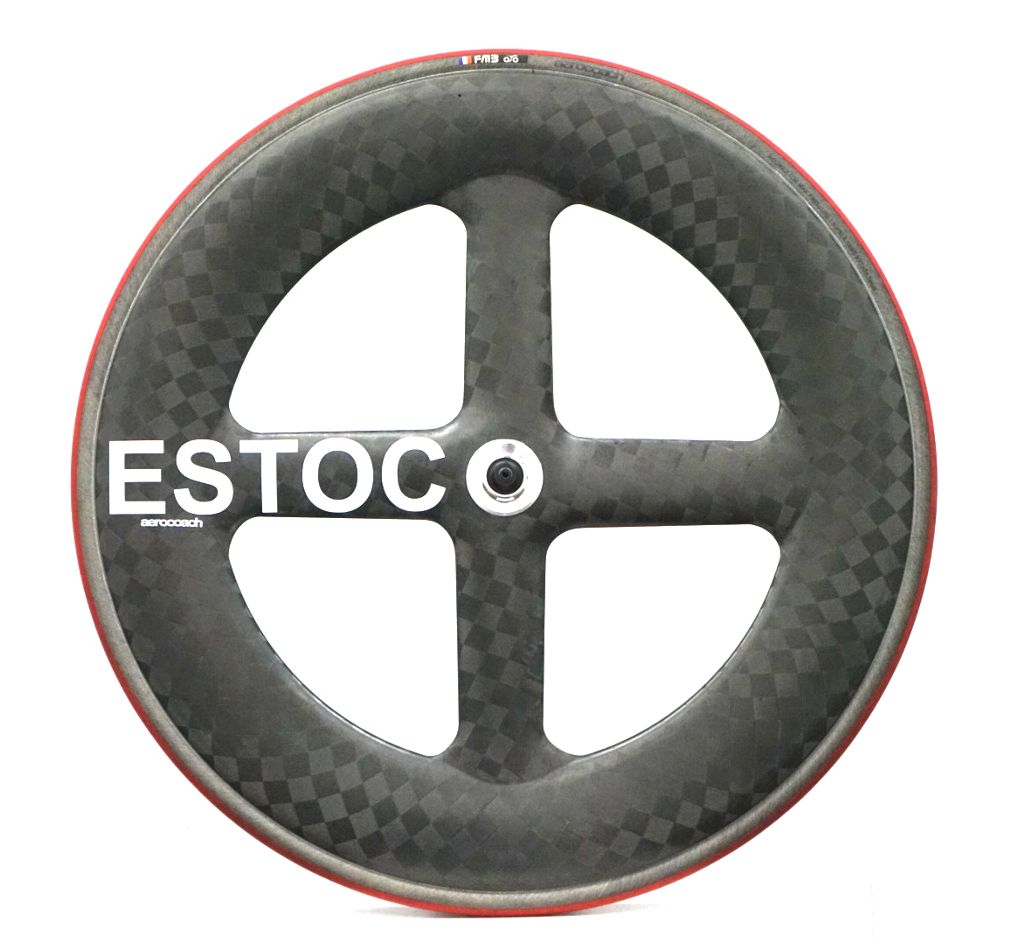

AeroCoach AEOX® ESTOC clincher carbon track 4 spoke wheel
Please note: Estoc clincher wheels will ship from March 2026
The AEOX® Estoc wheel uses the world's first asymmetric aerodynamic rim shape for velodrome usage, resulting in the fastest non-disc front wheel in an environment where tiny margins make the difference between silver and gold.
DEVELOPMENT
The clincher Estoc builds on the features of the tubular Estoc: with 4 deep bladed spokes integrated into an asymmetric rim, using a deeper and wider rim shape to aerodynamically accommodate the width of modern clincher tyres.
As the rider and bike move through the bankings, they experience angular airflow. Due to the lean angle of the rider, they subsequently experience yaw (and pitch) angles. The yaw angle can reach up to ~5deg in some instances, but the most common angles experienced overall are -1 to +3deg, and it is these angles that the AEOX® Estoc has been optimised for. See our data below for a comparison with other wheels.
DATA

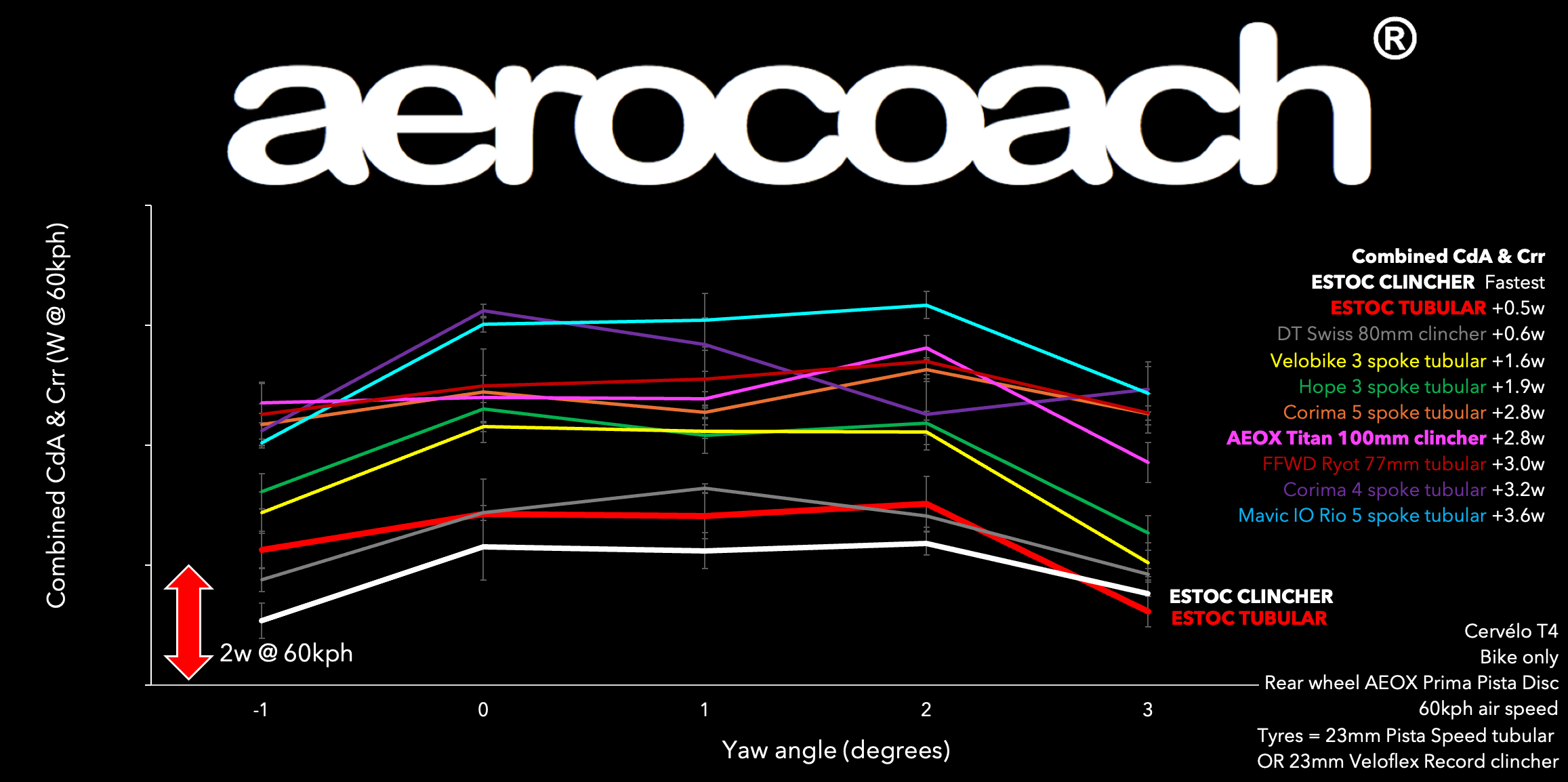

This graph gives a comparison between the AEOX® Estoc wheels and other spoked and composite spoked wheels. The fastest wheel in terms of combined CdA (aerodynamic drag) and Crr (rolling resistance) is an Estoc clincher, followed closely behind by an Estoc tubular.
USAGE
AEOX® Estoc wheels are ideal for bunch riding, individual sprint events and individual timed events alike.
INSTALLATION
SPECIFICATION
Material: Carbon fibre rim/spokes
Hub & bolts: aluminium
Recommended nominal tyre width: 23-25mm
Weight: 900g ±10g
Usage: indoor/outdoor
WHAT'S INCLUDED
For quick release (standard dropouts), bolts are included. Thru axle compatible Estoc wheels do not come with a thru axle. 65mm wide version available on request.
